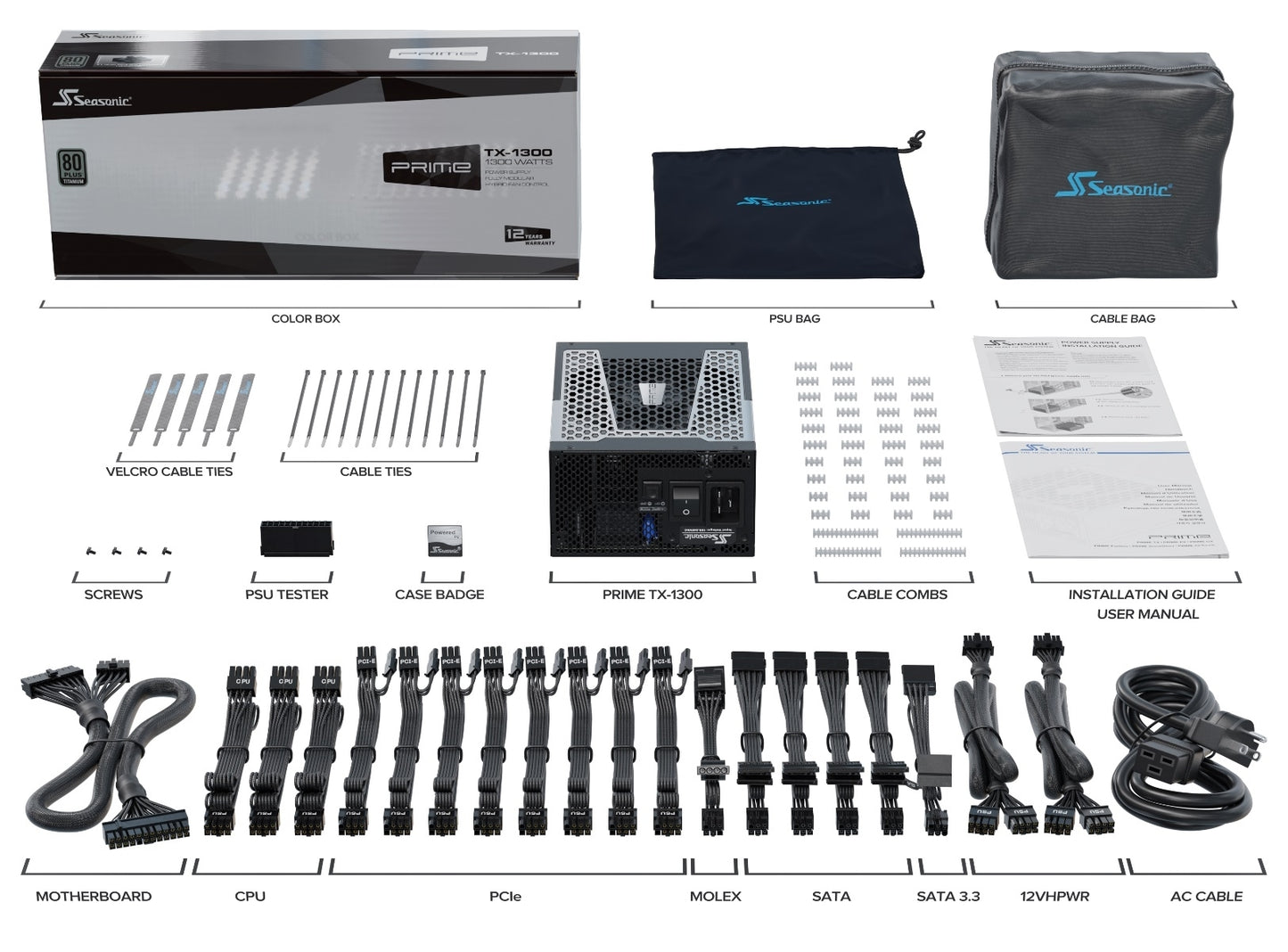

Seasonic PRIME TX-1300 1300W Titanium ATX 3.0 Fully Modular PSU

FEATURE SUMMARY

80 PLUS® Titanium certified

ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

Micro Tolerance Load Regulation (0.5 %)

Cable-free Connection Design

Premium Hybrid Fan Control - Fanless until 40 % load

Multi-GPU setup

Gold plated connectors

Note: 16A 3-pin plug adaptor might be needed.

Technical Specifications
80PLUS®		Titanium
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel ATX 12 V 3.0
Dimensions		210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	135 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C
	MTBF @ 25 °C, excl. fan	150,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		12 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 15 - 8 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	108.3 A	0.5 A	3 A
		125 W		1300 W	6 W	15 W
	Total Continuous Power	1300 W
